About This

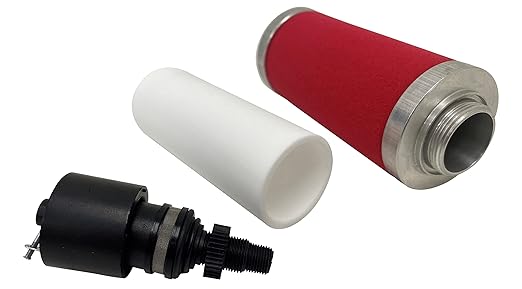

• 3 Items in this listing. 2 THB filters + 1 Internal Float Drain (Auto Drain).
• (1) THB F9607 Particulate Filter for 90 series THB Particulate Filters and 90 series THB Filter Regulators. 5 micron rating removes 95% moisture and debris. Dimensions: 4" Height X 1.65" Width.
• (1) FM9607 Coalescing Filter for 90 series THB Coalescing filters. 0.01 Micron rating removes 99.98% moisture vapor &/or oil. Dimensions: 5.5" Height X 2.25" Width.
• (1) D51 Internal Float Drain. Threaded bottom tip is 1/8" Male NPT. Dimensions: 3" Height, 1-1/8" Width widest part of the body. 175 PSI Max input/output pressure.
• To install Float Drain, remove the old manual or auto drain from your old bowl. Remove the plastic nut from the Auto drain and set to the side. Drop this Auto drain into the THB Metal bowl with the threaded side down. Once the threaded end us protruding from the bottom of the THB Metal bowl, screw on the plastic nut to clamps and tighten the drain to the bottom of the bowl.
